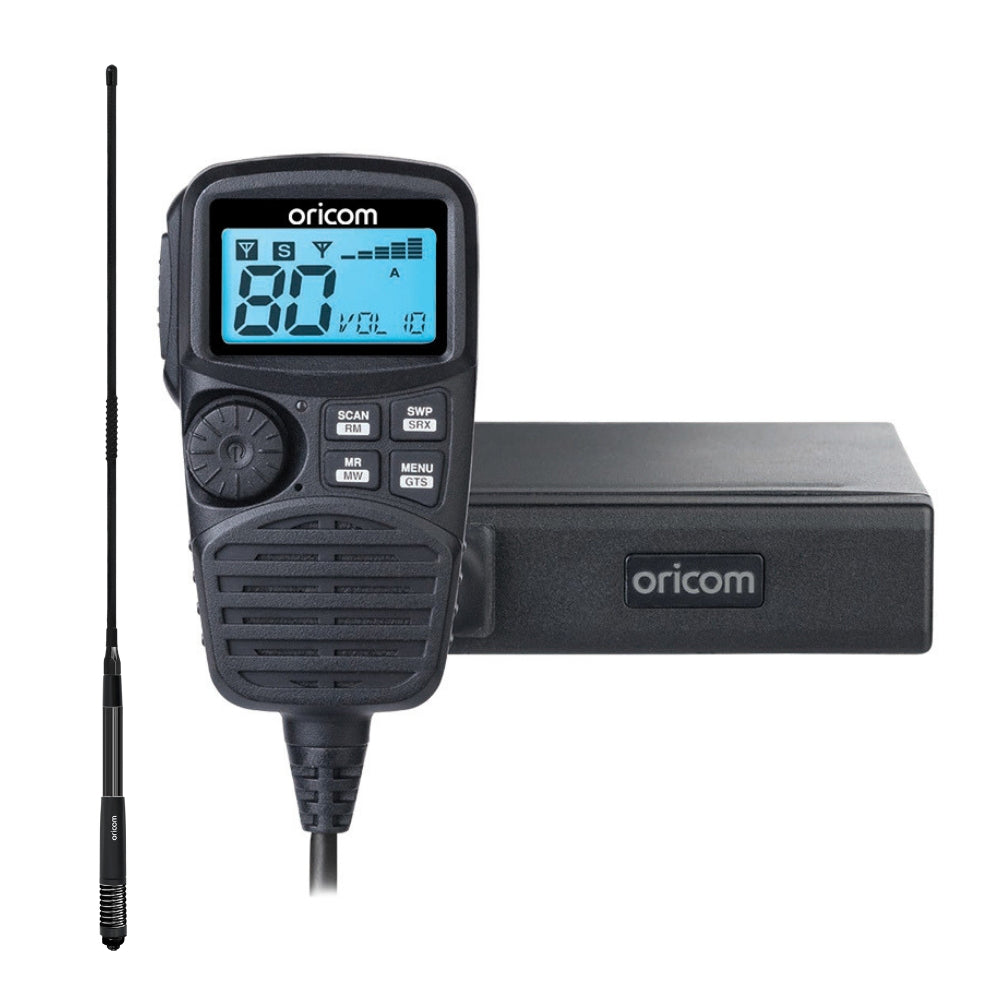

UHF350DRA - Dual Receive UHF CB Radio Value Pack
Product Details

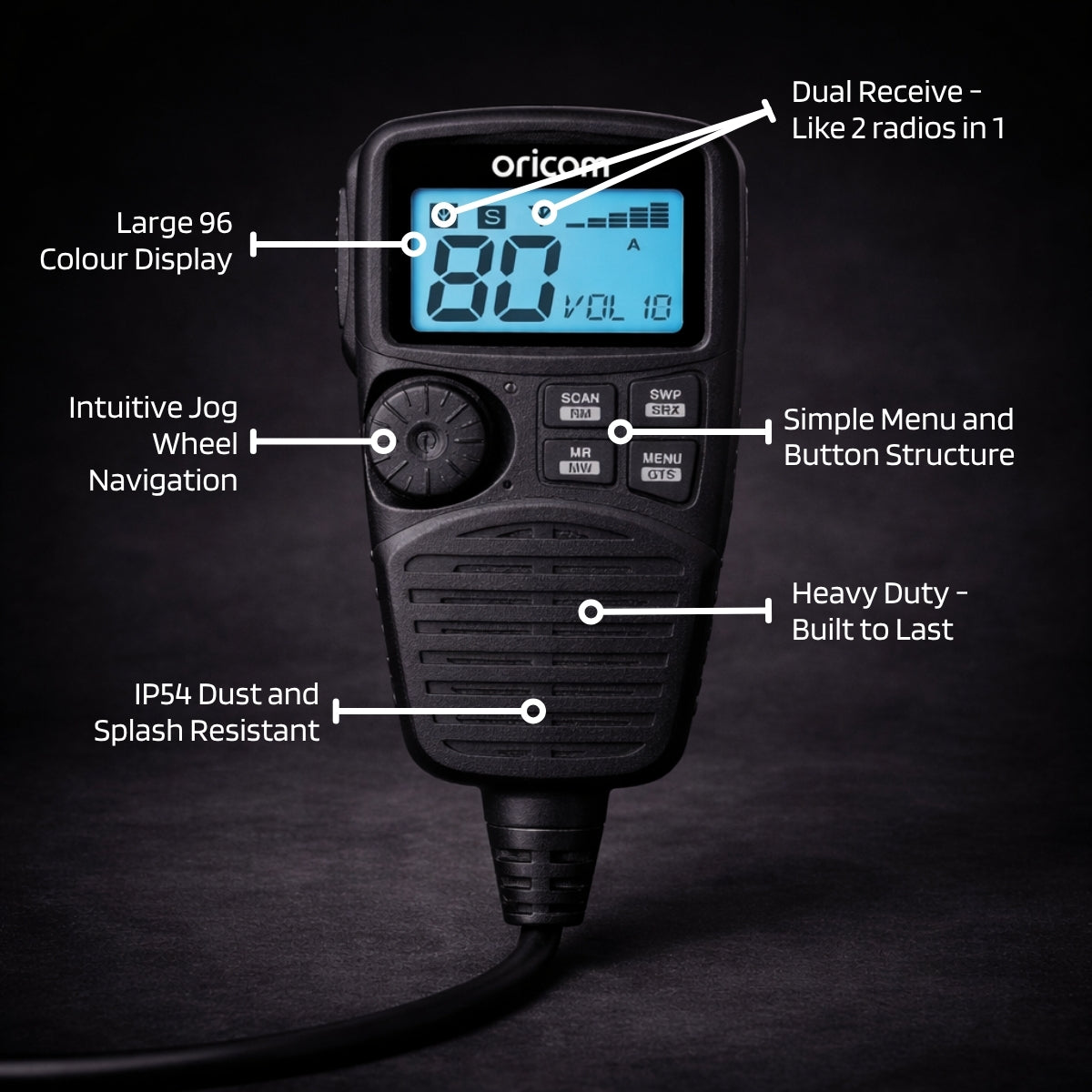

UHF350DR Key Features:
- Dual receive like 2 radios in 1

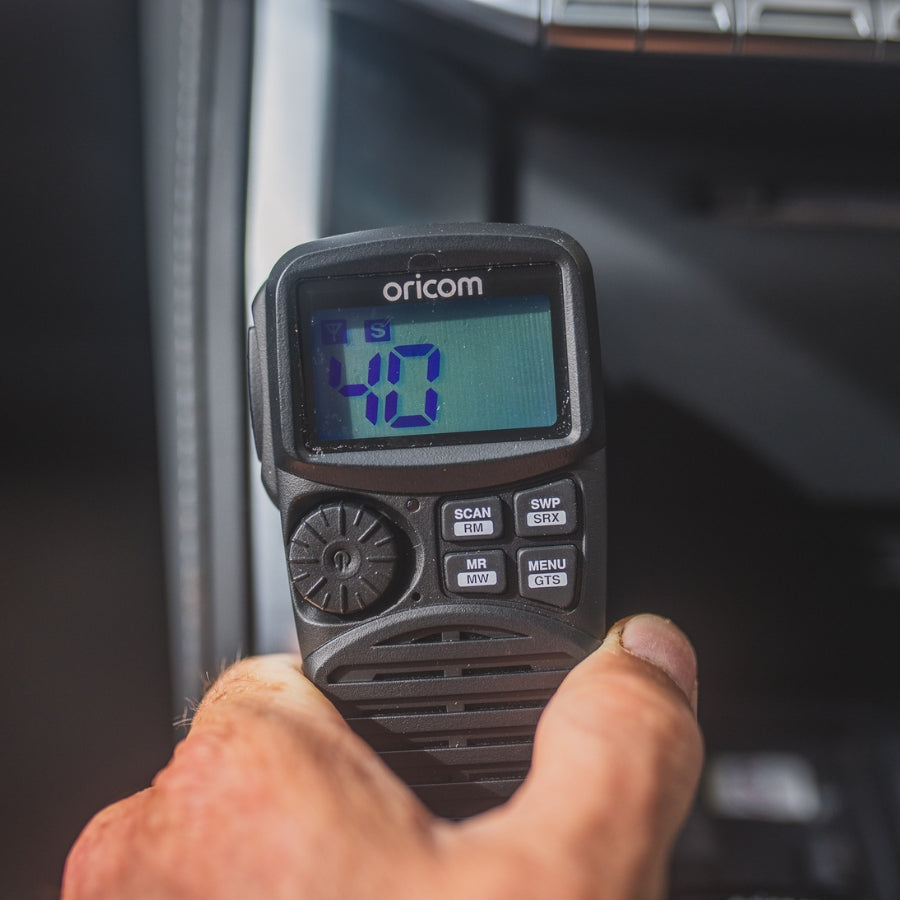

- Heavy duty controller speaker microphone
- IP54 dust and splash resistant (microphone only)
- 3 memory groups of 16 channels per group (PC programmable)
- Large 96 colour multi-colour backlit display
- Back light brightness (5 pre-set levels plus auto)
- Fast scanning 80 channels within 5 seconds
- Rotary volume/channel and squelch control
- Duplex
- 38 CTCSS & 104 DCS codes
- Auto power off (off/1h/2h/4h)
- 3.5mm external jack (for optional external speaker)
- 5 Year warranty

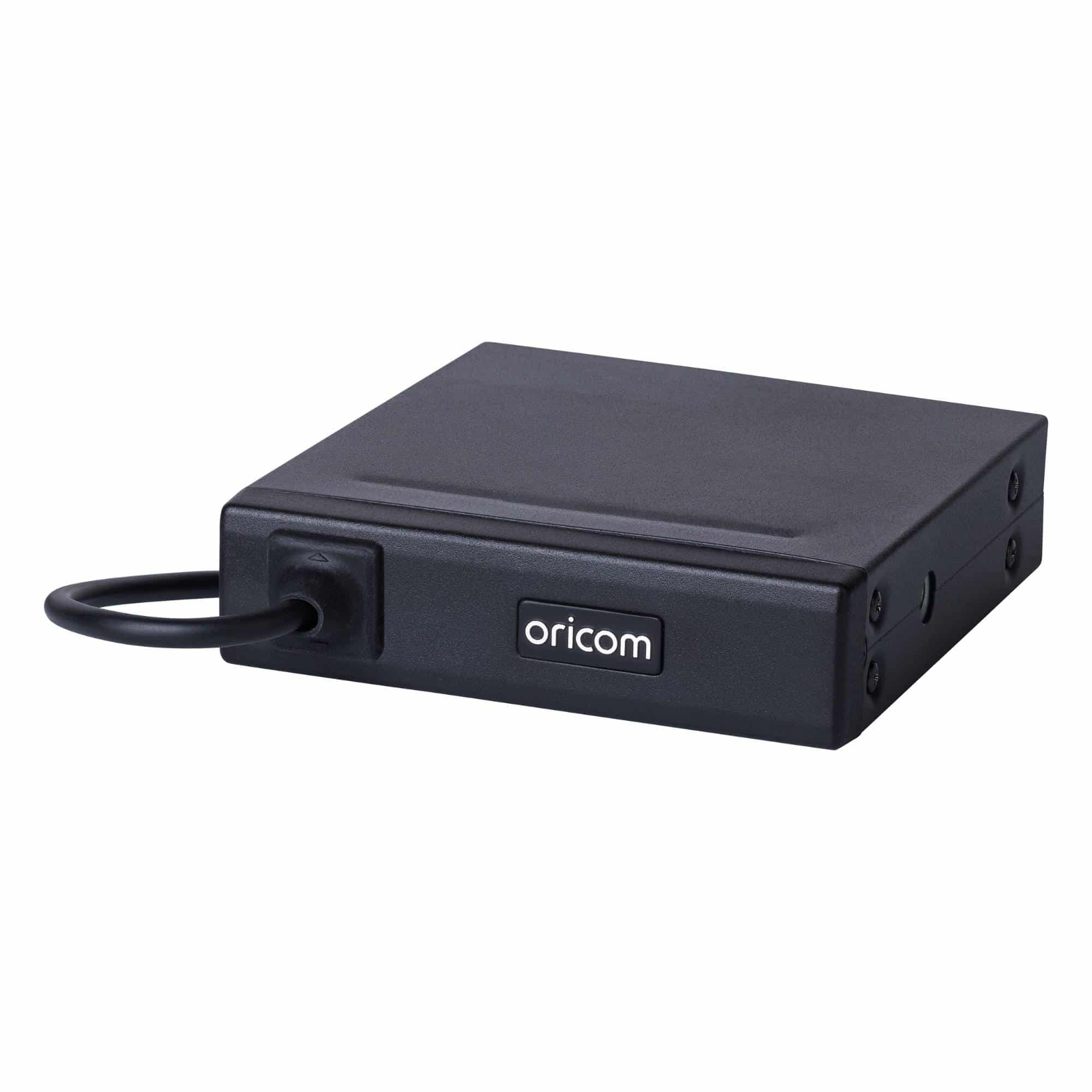

- Transceiver Dimensions (29mm x 110mm x 115mm)
Antenna Key Features:
- Heavy duty spring base
- Fibreglass whip
- Length of antenna is 830mm*
- Includes Low-loss coaxial cable (4.5m)
- Pre-terminated FME connector and PL259 adaptor
*Length of antenna includes spring base.
.
Files
User guides
Accessories/Spare parts
Product registration
Additional Information
- Frequently Asked Questions
- Videos Guides
What are the black rubber washers for?
The black rubber washers are to be placed between the radio and mounting bracket to provide resistance to movement but still allow the position of the radio to be adjusted.
I am transmitting on my radio and the other party can’t hear me?
If you are using channels 1 to 8 or 41 to 48 you could be transmitting in Duplex mode, turn DPX off or move to another channel.
What is CTCSS?
CTCSS, or Continuous Tone Coded Squelching System, is an option that allows your UHF radio(s) to only pick up radio signals preceded by a “code”. This option helps to cut down on unwanted radio chatter. This is also known as PL, Private Line, Channel Guard, etc.
If the UHF Radio does not switch on at all?
Check the power lead (wire harness) and fuse.
What is the range of the UHF radio?
The type of antenna you use and where it is mounted on your vehicle will affect the range. A Low gain antenna will give you less range but wider coverage. A high gain antenna will give you greater range but it produces a narrower field which is more directional. Mounting the antenna low on the vehicle will shield the transmission in the directions close to the vehicle, so ideally the antenna needs to be mounted as high as possible.
How far does a UHF radio transmit?
Many factors affect how far a UHF radio will transmit including power of the radio and the environment in which it’s used (e.g. buildings, mountainous and surrounding vegetation can cause range problems).
What is a Repeater?
A Repeater is a Radio Relay Station. It is used when the radio signal needs to be magnified to get the desired distance coverage. It works by receiving a radio signal from one unit, magnifying it and retransmitting the signal to another radio unit. It would be used in an area where coverage was hindered by terrain, buildings or other environmental conditions.
