AIR40 Twin Cylinder Air Compressor + Inflation Kit
100% Aussie Owned
Free Delivery Over $99
Trusted Local Support
Product Details
Key Features:

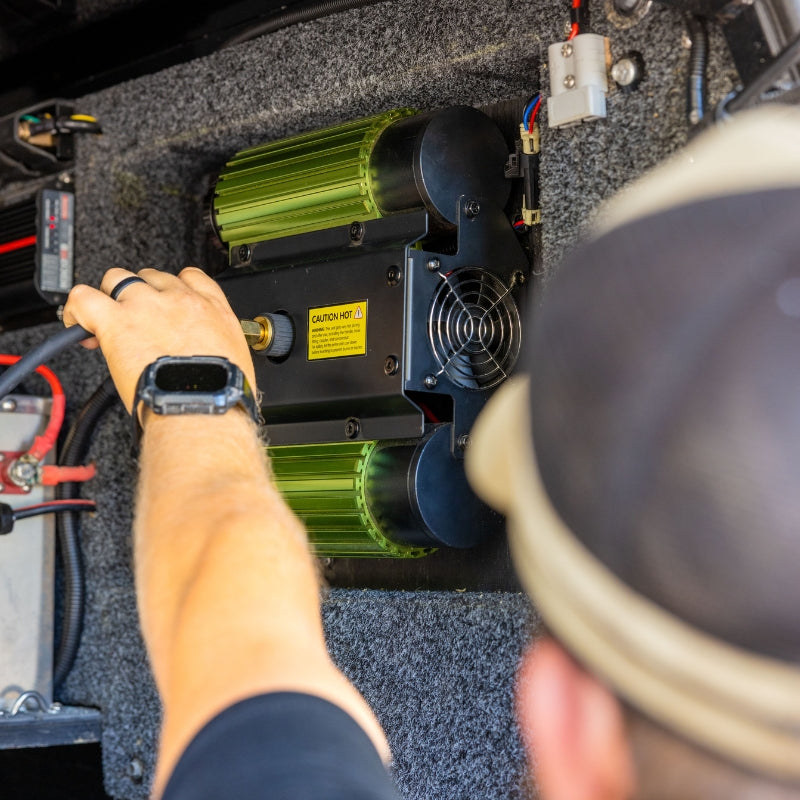

- High Flow Rates at Various Pressures – Offers a consistent, high flow rate even at different pressure settings, enhancing performance and speed.

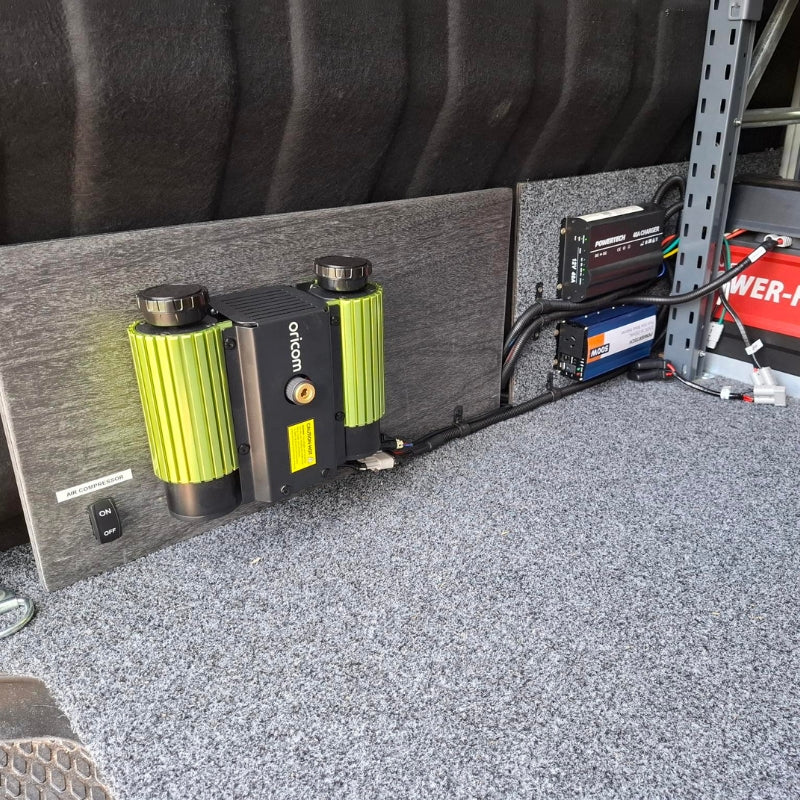

- Air Flow Rate of 130L/min (0 PSI) – Rapid inflation even at lower pressures, reducing downtime.
- Thermally Protected Motor – Prevents overheating during extended use, ensuring long-term durability.
- Washable Air Filter – Reduces maintenance by allowing easy cleaning and reusability.

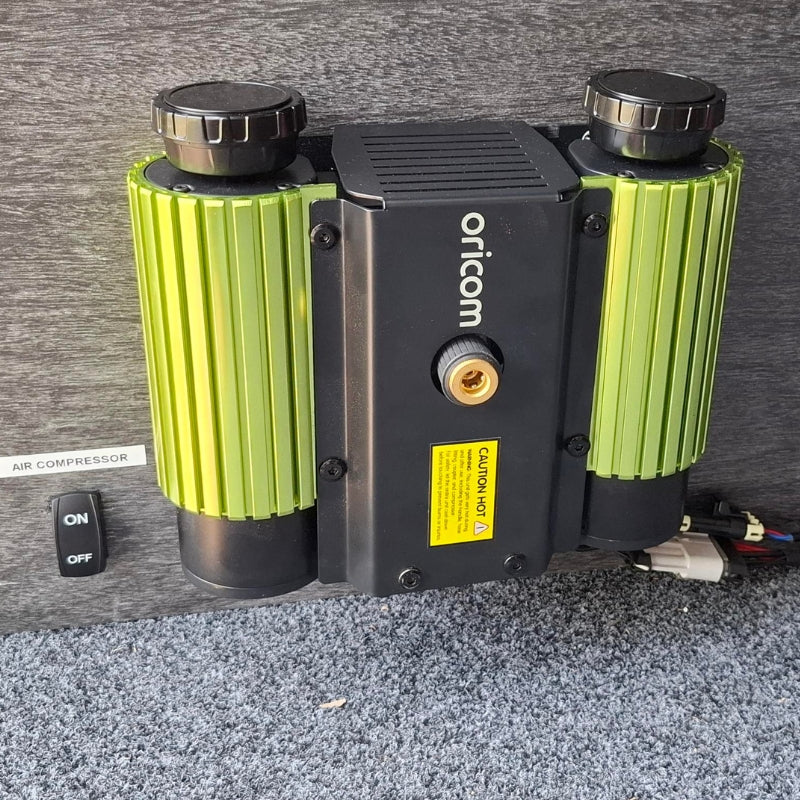

- Automatic Shut-Off Pressure Switch (150 PSI) (1034kPa) – Safeguards your tyres and compressor by preventing overinflation.
- Max Working Pressure of 150 PSI (1034kPa)– Ensures reliable performance for large vehicle tyres even in demanding situations.

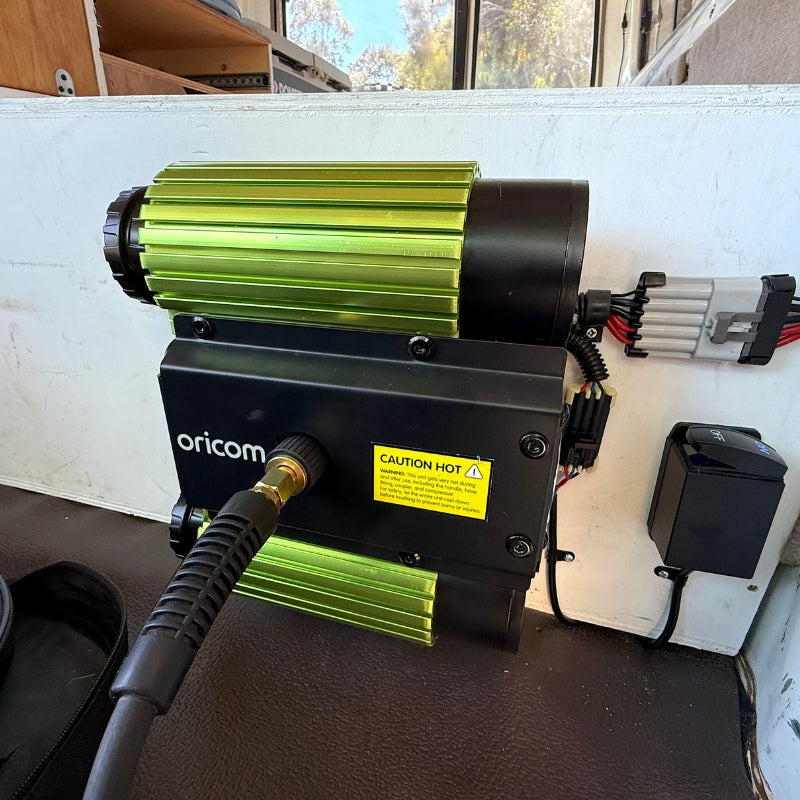

- 6m Hose Length with NPT 1/4" Quick Connect – Provides ample reach for inflating multiple tyres or different vehicles.
- Compatible with Oricom’s tyre inflator and deflator kits
Specifications:
- Number of Cylinders: 2
- Cylinder Diameter (Bore): 40mm
- Voltage: 12-13.8VDC
- Current Draw Under Load: 62A
- Current Draw No Load: 35A
- In line Fuse Supplied: 40A
- Washable Air Filter: Yes
- Max Pressure: 300PSI
- Max Working Pressure: 150PSI (1034kPa)
- Duty Cycle: 100% until thermal cut-out operates
- Air Flow Under Load: 108L/min (40PSI) (276kPa)
- Air Flow Rates: 130 L/min (0PSI) 112 L/min (29PSI) (200kPa)
- Pressure Cutout Switch: Cuts out automatically when 120-150psi pressure reached
- Thermal Protection: Automatically shuts off at 115°C to prevent overheating
- Connection to Battery: Wiring loom
- Hose Length: 6m
- Hose Connector Type: NPT ¼" Quick Connect
- Product Dimensions (cm): 29x24.5x12
- Weight: 10.2kg
- Warranty: 3 Years
Tested to meet safety standards: AS/NZS 60335.1:2020-tAl:2021 and EMC compliant with EN/IEC 55014-1:2021
Files
User guides
Accessories/Spare parts
Product registration
Additional Information
- Frequently Asked Questions
- Videos Guides
What is the maximum pressure and airflow rate of the AIR40?
The Oricom AIR40 delivers a maximum pressure of 300 PSI and a maximum airflow rate of 130L/min at 0 PSI. This high-performance capability ensures rapid inflation, making it ideal for large tyres and off-road use.
Is the AIR40 suitable for use with 4WDs and off-road vehicles?
Yes. The AIR40 is specifically designed for 4WDs and off-road applications , with its high flow rate, twin-cylinder build, and durable construction. It’s engineered to handle tough inflating jobs in demanding conditions.
How does the automatic shut-off feature work?
The AIR40 includes an automatic shut-off pressure switch that activates when pressure reaches 120–150 PSI . This prevents overinflation, protecting both the compressor and your tyres.
Does the AIR40 have thermal protection to prevent overheating?
Yes. The AIR40 is equipped with a thermally protected motor , which helps prevent overheating during extended use. This enhances both safety and long-term durability
What is the warranty period for the AIR40?
The Oricom AIR40 comes with a 3-year warranty , giving you peace of mind and confidence in its quality and reliability.
